MODEL

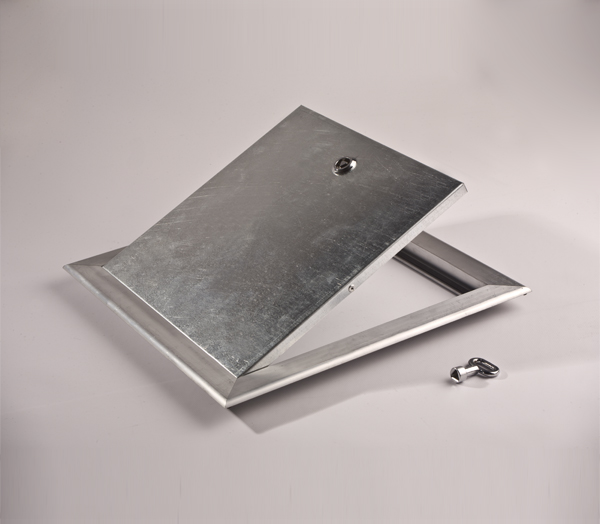

*BCC: Control Cover
MATERIAL
The frame of the product is manufactured from extruded aluminium profile and cover is manufactured from galvanized sheet. Also there is fiberglas inside of the cover.
USAGE
Control covers are used for interfering easily in all installations such as air handling units in ventilation system applications where maintenance is needed. Control covers can be opened and closed by the special lock mechanism on its frame
ASSEMBLY
*Installation with screw
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Depending on demand, all the colors in other RAL codes are provided too.
ORDER CODE
Model / Neck Size / Coating Type

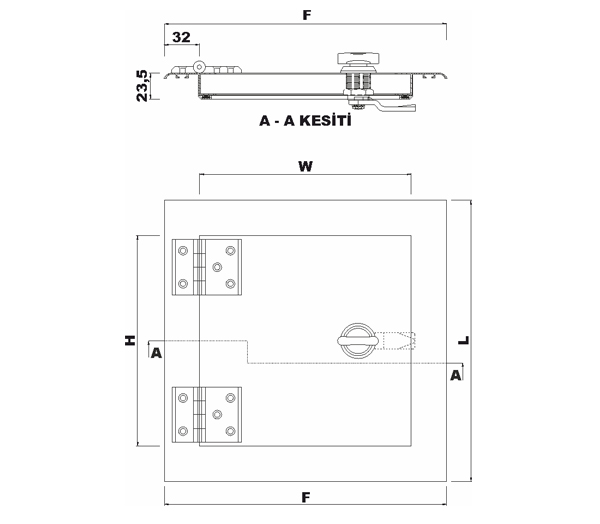

SYMBOLS
W (mm) : Neck length H (mm) : Neck width
F (mm) : Frame length
L (mm) : Frame width
EPC : Eloctrostatic powder coating
|
