MODEL

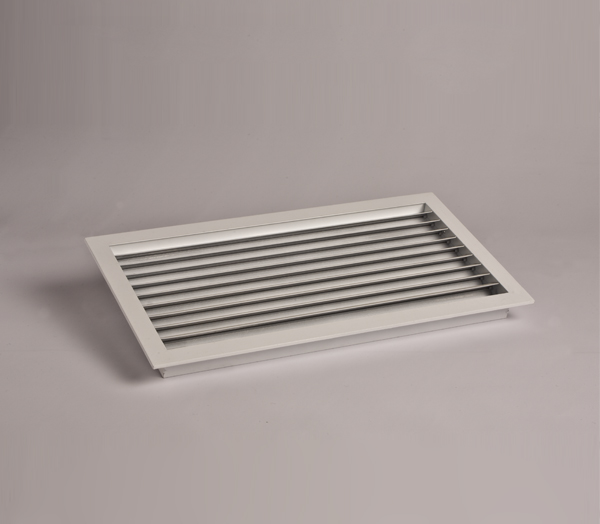

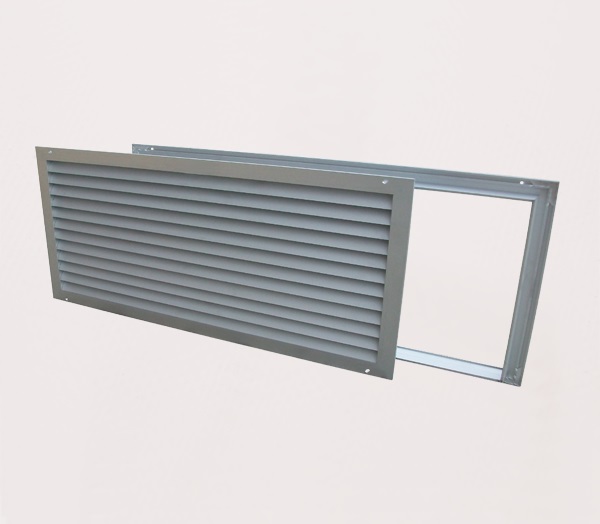

BDTG : Door transfer grille, with “V” form blades, 22 mm frame and facing frame.
MATERIAL
All of the product frame and blades are manufactured from extruded aluminium profile.
USAGE

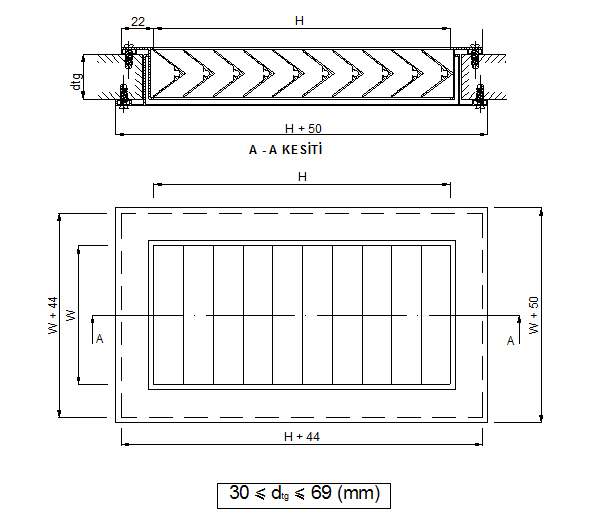

They are used for providing the natural air circulation occuring due to the pressure difference between the spaces. They can be applied to the walls and doors with thickness between 30 mm and 69 mm.
COATING
Frame Types
ASSEMBLY
ORDER CODE
Model / Frame Type / Accessory / Assembly Method / Standard Dimensions / Coating Type
SYMBOLS
SC : Installation with screw
W (mm) : Neck length
H (mm) : Neck height
EPC : Eloctrostatic powder coating
NA : Aluminium anodized
