MODEL

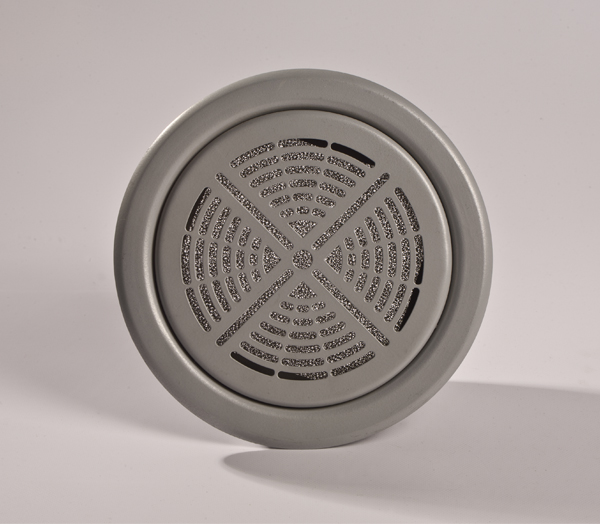

*BFLD: Floor Diffuser
MATERIAL
Diffuser surface and casing of product is manufactured from 1,2 mm DKP sheet by spinning method.
USAGE
They are used for blowing of hot or cold conditioned air from the ventilation ducts installed under the raised floor to the environments such as auditorium, computer rooms, theathers, cinemas, concert halls, conference halls and lecture halls. They have the property of blowing air at low velocity and sound levels, and they generate high induction. Due to this, the temperature and flow velocity near the floor decrease quickly. Product can resist to load up to 10 kN. Also, they are suitable for vertical air throw.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
* They are installed directly on the raised floor. No installation element is needed.
ACCESSORIES
* WF : POL 20/6 yýkanabilir filtre
ORDER CODE
Model / Accessory / Coating Type

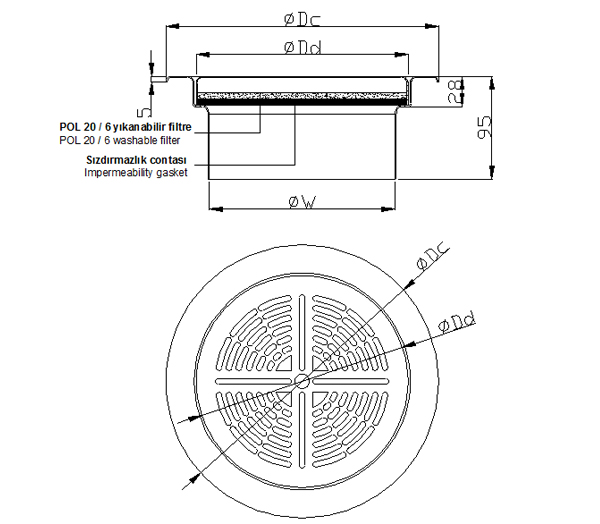

SYMBOLS
ØDC (mm) : Body diameter of floor diffuser ØDd (mm) : Surface diameter of floor diffuser
ØW (mm) : Neck diameter of floor diffuser
Aeff. (m²) : Effective area
EPC : Eloctrostatic powder coating
|
