MODEL

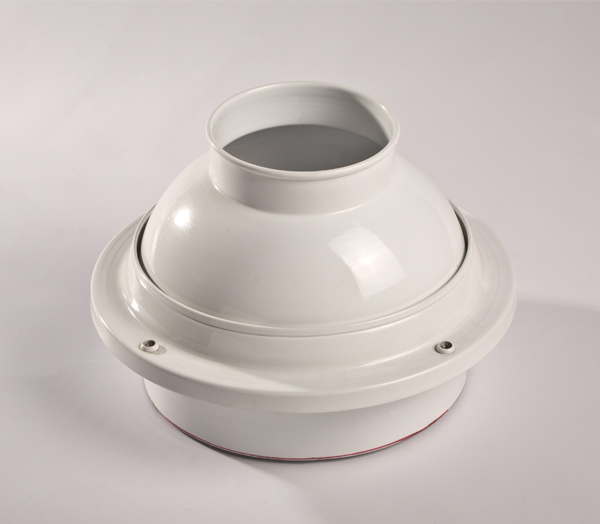

*BJD : Single-walled jet diffuser with manually adjustable internal body.
MATERIAL
Product is manufactured from aluminium sheet by spinning method.
USAGE
They are suitable for usage in places that have high ceiling such as concert hall, theater and museum where grille and diffuser usage are not suitable. They can make horizontal or vertical point air throws to long distances at high air flow rates. They can blow by ±30° angle with horizontal. Therefore, they can achieve point heating and cooling.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodized
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
* Installation with screw to wall.
* Installation with flange, screw and rivet by adjustment of adaptor piece suitable for ducts and openning collar.
* Installation with hanging mechanism to flexible duct connections.
ACCESSORIES
* Duct adaptor.
ORDER CODE
Model / Coating Type

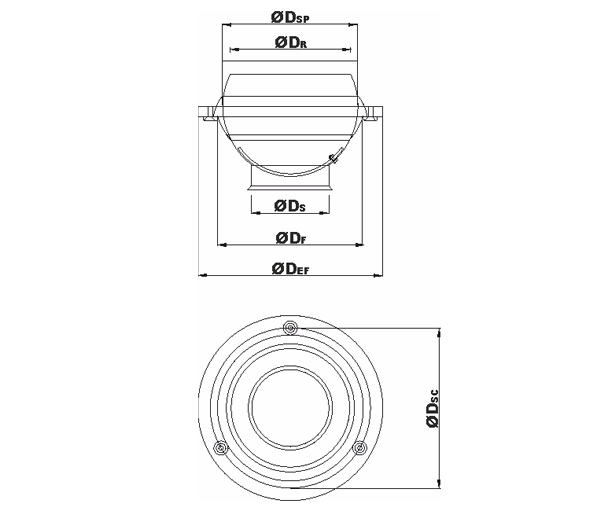

SYMBOLS
ØDS (mm) : Supply mouth diameter ØDF (mm) : Flange diameter
ØDSC (mm) : Flange fixing screw axis diameter
ØDEF (mm) : Flange external diameter
ØDSP (mm) : Sphere diameter
ØDR (mm) : Return mouth diameter
EPC : Eloctrostatic powder coating
NA : Aluminium anodized |
