MODEL

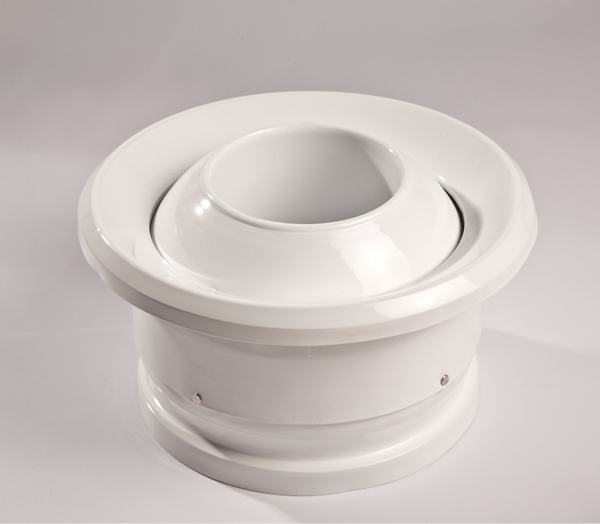

*BJD-DW : Double-walled jet diffuser with manually adjustable internal body.
MATERIAL
Product is manufactured from aluminium sheet by spinning method.
USAGE
They are suitable for usage in places that have high ceiling such as concert hall, theater and museum where grille and diffuser usage are not suitable. They can make horizontal or vertical point air throws to long distances at high air flow rates. They can blow by ±30° angle with horizontal. Therefore, they can achieve point heating and cooling.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodized
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
* Installation with hidden screw.
* Installation with flange, screw and rivet by adjustment of adaptor piece suitable for ducts and openning collar.
* Installation with hanging mechanism to flexible duct connections.
ACCESSORIES
* Duct adaptor.
ORDER CODE
Model / Coating Type

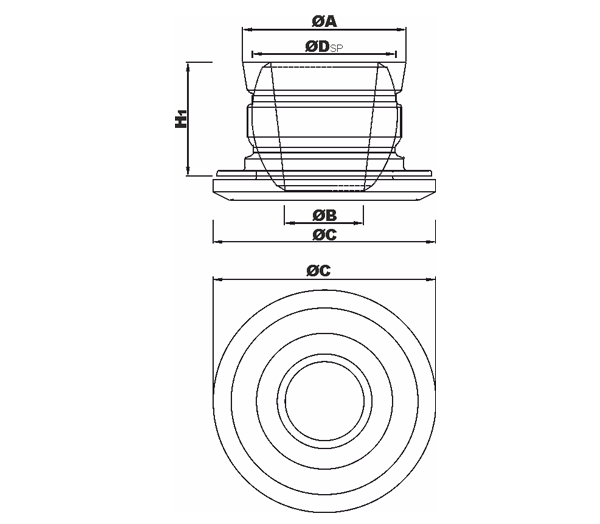

SYMBOLS
ØB (mm) : Supply mouth diameter ØC (mm) : Flange diameter
ØA (mm) : Return mouth diameter
ØDSP (mm) : Sphere diameter
ØD (mm) : Round duct diameter suitable to jet diffuser
ØH1 (mm) : Jet diffuser’s body height
SC : Installation with screw
EPC : Eloctrostatic powder coating
NA : Aluminium anodized |
