MODEL

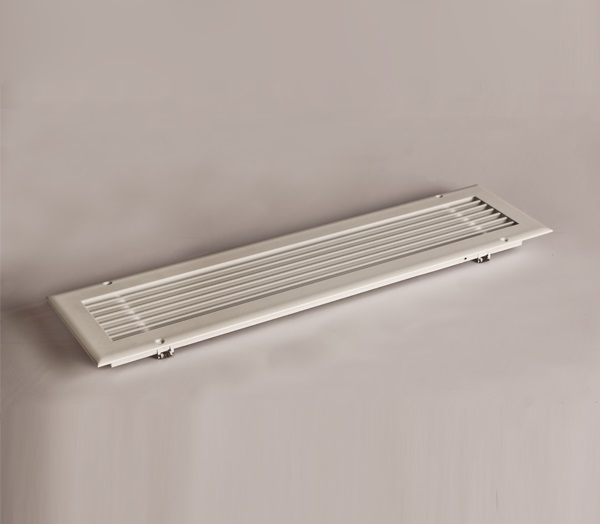

• BLG1 :  Linear grille, that has fixed blades with 17°  bending.

• BLG3 :  Linear grille, that has fixed blades with 30° bending.

• BLGAD : Linear grille Access door with 17°  or 30° bended blades.

MATERIAL

All of the product frame and blades are manufactured from extruded aluminium profile.

USAGE

Linear grilles are used for supply of hot or cold conditioned air that has low temperature differences from ventilation ducts to ambiance or for extraction of polluted air from ambiance. Linear grille Access doors provide easy intervention to devices in case of any breakdown and also they can be used as supply/return grille for devices.

• Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)

• Aluminium anodized

• Depending on demand, all the colors in other RAL codes are provided too.


Frame Types

• 17 mm frame

• 22 mm frame

• 32 mm frame

ASSEMBLY

• Installation with screw

• Installation with clips

• Installation with plate spring

ACCESSORIES

• BPBD : Parallel blade damper

• BOBD : Opposed blade damper

• BPB  : Plenum box
• BSB  : Subframe

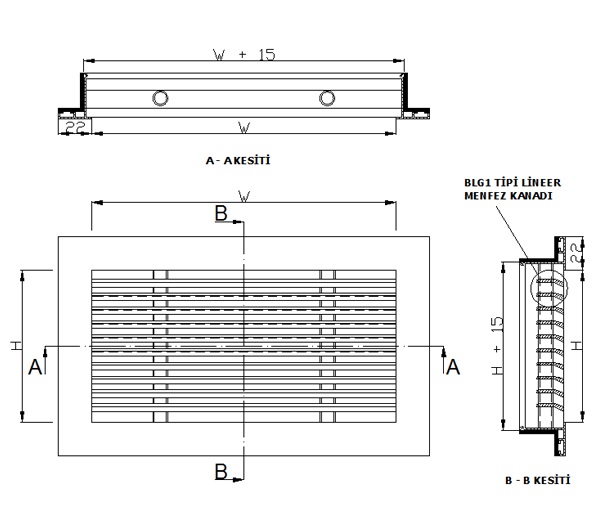

SYMBOLS

BLGF                : Linear grille frame
SC                     : Installation with screw
CS                     : Installation with clips
PS                     : Installation with subframe
W (mm)             : Neck length
H (mm)              : Neck height
EPC                  : Eloctrostatic powder coating
NA                     : Aluminium anodized
