MODEL

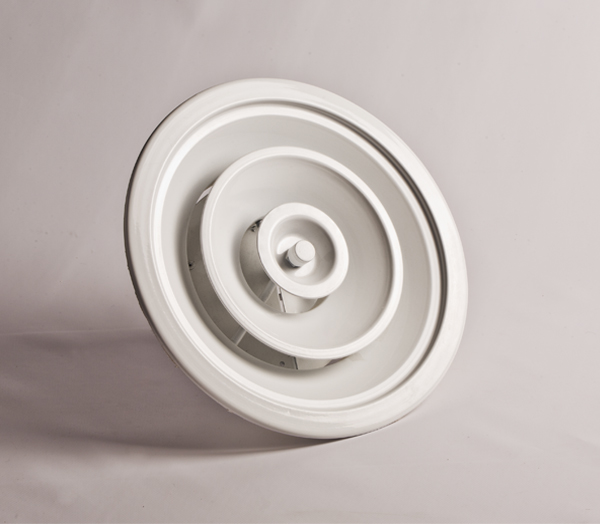

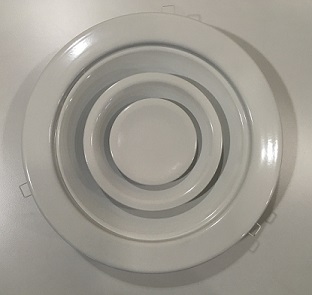

*BRCD : Round ceiling diffuser that has fixed internal core.
*BRCD – A : Round ceiling diffuser that has demountable internal core.

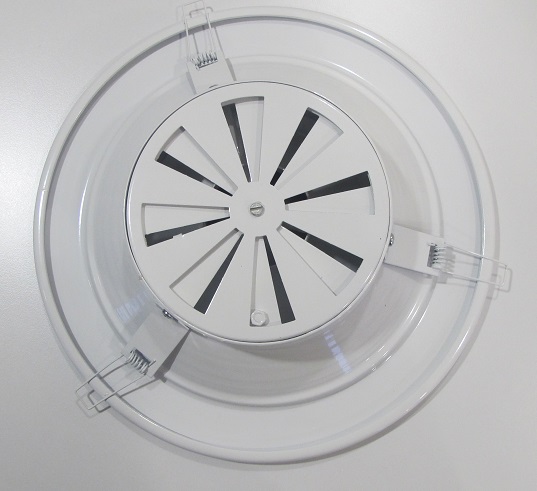

*BRCD & BBD : Round ceiling diffuser that has fixed internal core and butterfly damper.
MATERIAL
Product external frame and blades are manufactured from aluminium sheet produced by spinning method.
USAGE
Round ceiling diffusers are used for supply of conditioned hot or cold air from air ducts to ambiances such as office, shopping center and conference hall and for extraction of polluted air from these ambiances. Also, they are suitable for horizontal air throws due to their blade structures and are fixed to ceiling.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodic oxidation
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
*Installation with screw
*Installation with hidden screw from the neck.
ACCESSORIES
*BBD: Butterfly damper
*BPB: Plenum box
ORDER CODE
Model / Standard Dimensions / Assembly Method / Accessory/ Coating Type

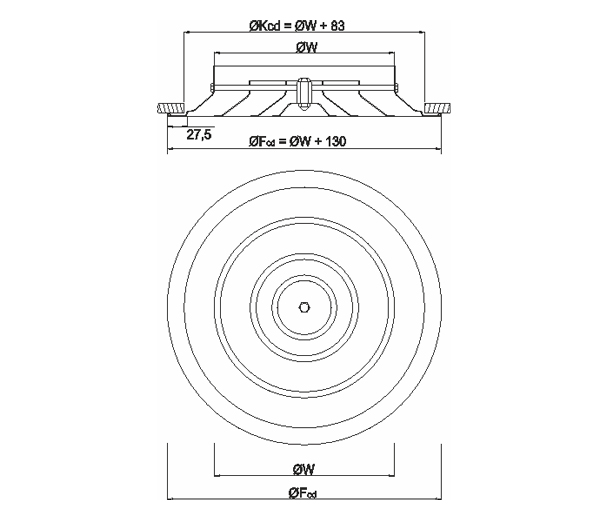

SYMBOLS
ØW (mm) : Round ceiling diffuser’s neck diameter
ØFcd (mm) : Round ceiling diffuser’s frame diameter
ØKcd (mm) : Round ceiling diffuser’s installation hole diameter
SC1 : Installation with screw
SC2 : Installation with hidden screw from neck
EPC : Eloctrostatic powder coating
NA : Aluminium anodized
;)
;)
;)
;)
