MODEL

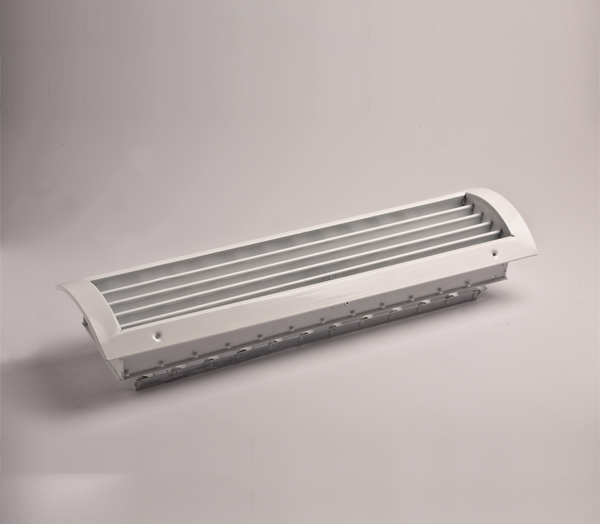

- BROADG-S : Supply type round air duct grille

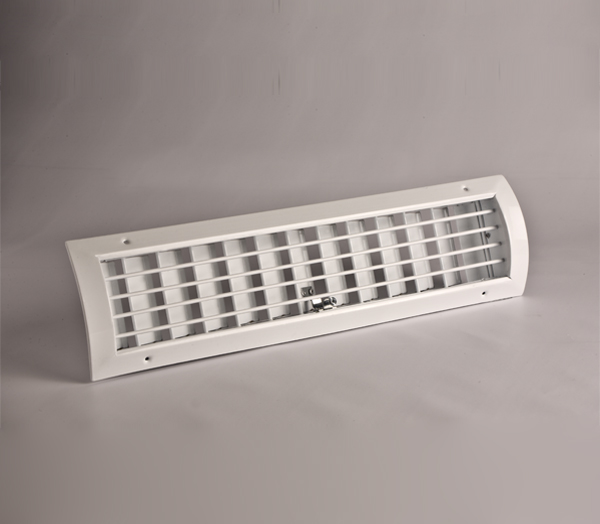

- BROADG-R : Return type round air duct grille
MATERIAL
Product casing and blades are manufactured from extruded aluminium profile up to Ø250 mm diameter. Over Ø250 mm diameter as for, product casing is manufactured from galvanized sheet
USAGE
Round air duct grilles are used for supply of hot or cold conditioned air from round air ducts
to ambiances such as office, shopping center; and for suction of polluted air from these ambiances.
COATING
- Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
- Aluminium anodized.
- Depending on demand, all the colors in other RAL codes are provided too
ASSEMBLY
- Installation with screw to round air duct.
ACCESSORIES
- BPBD : Parallel blade damper
ORDER CODE
Model / Standard Dimensions / Accessory / Coating Type

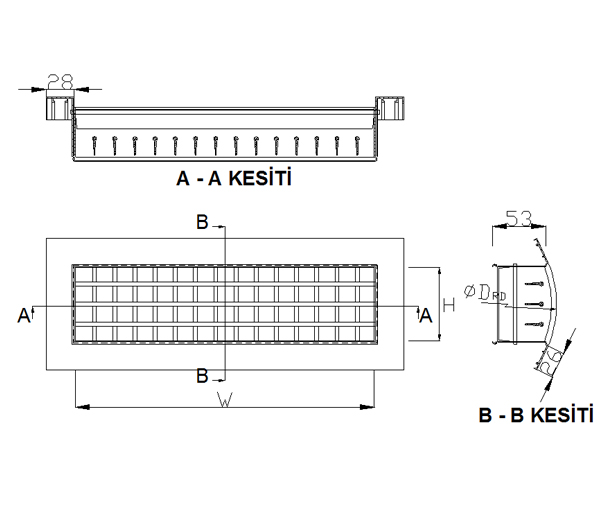

SYMBOLS
W (mm) : Neck length
H (mm) : Neck height
NA : Aluminium anodized
EPC : Eloctrostatic powder coating
;)
;)
;)
