MODEL

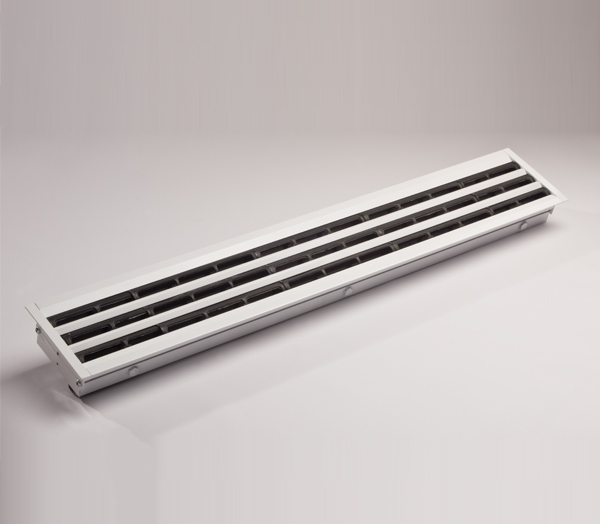

*BRSD: Roller Slot Diffuser
MATERIAL
The casin of the product is manufactured from aluminium profile and th blades are from plastic.
USAGE
Roller slot diffusers are used for supply of hot or cold conditioned air from air ducts to ambiances such as office, meeting room, shop where ceiling height is 2,6 – 4 mt and it can be also used for extarting the polluted air from these ambiances. Product can be installed to ceiling or wall and it can be manufactured with 1,2,3 or 4 slots.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodized
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
*Bridge installation to plenum box
*Installation with plenum box to ceiling by hanger
*Installation to wall
ORDER CODE
Model / Standard Dimensions (L (mm) x s) / Accessory / Coating Type

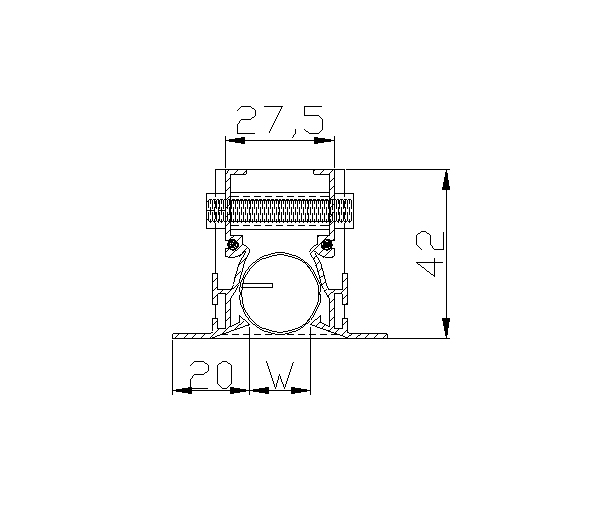

SYMBOLS
ØD : Inlet diameter of slot diffuser’s plenum box L (mm) : Slot diffuser’s length
n : Number of plenum box inlet
s : Number of slot(s)
W (mm) : Slot diffuser’s width
F1 : Bridge installation to plenum box
F2 : Installation with plenum box to ceiling by hanger
F3 : Installation to wall
EPC : Eloctrostatic powder coating
NA : Aluminium anodized |
