MODEL

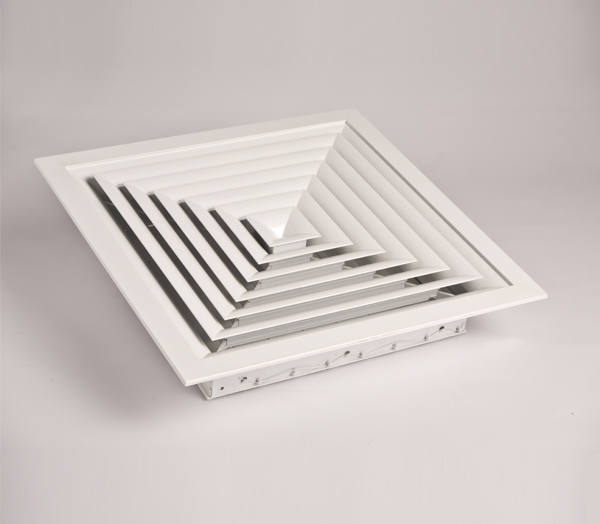

*BSCD-CB : Square ceiling diffuser, with fixed internal body and curved blades.
*BSCD-CBA: Square ceiling diffuser, with adjustable internal body and curved blades.
MATERIAL
All of the product frame, core and blades are manufactured from extruded aluminium profile.
USAGE
Curved blade square ceiling diffusers carry out the function of supplying the air from the ventilation ducts to ambiances such as office, shopping center, conference room and extracting the polluted air from these ambiances. They are directly mounted onto the duct or plenum box. They are suitable for ceiling applications with heights of 2,6 mt - 4 mt. They provide horizontal air throw due to their fixed and curved blade structures. 1, 2, 3 and 4 ways supply can be made due to the arrangement of the blades.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodic oxidation
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
* Installation with screw
* Installation with clips
ACCESSORIES
*BPBD : Parallel blade damper
*BOBD : Opposed blade damper
*BPB : Plenum box
ORDER CODE
Model / Accessory / Assembly Method / Standard Dimensions / Coating Type
SYMBOLS

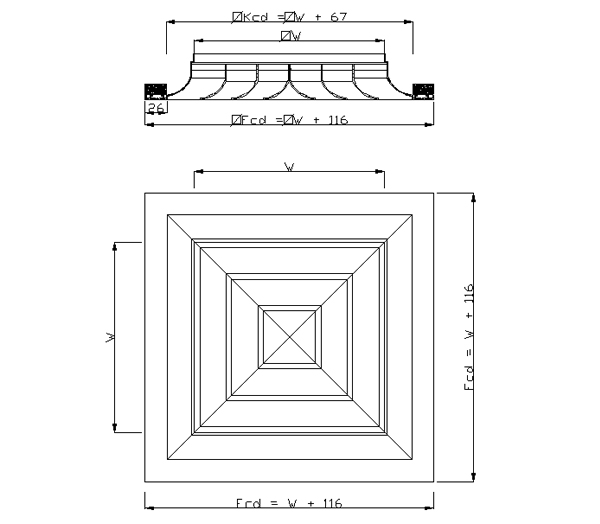

W (mm) : Neck length
Fcd (mm) : Frame Length
Kcd (mm) : Nominal duct width
SC : Installation with screw
CS : Installation with clips
EPC : Eloctrostatic powder coating
NA : Aluminium anodized
;)
;)
