MODEL

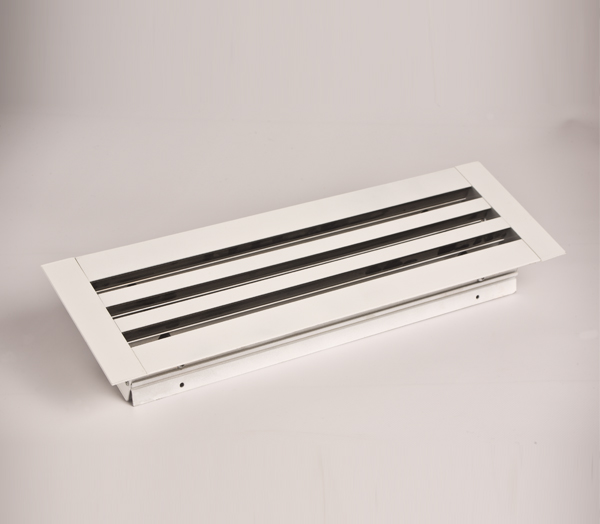

*BSD-S : Supply type slot diffuser with damper and deflection blades.
*BSD-R : Return type slot diffuser with damper.
MATERIAL
The casin of the product is manufactured from aluminium profile and the blades are from plastic.
USAGE
Slot diffusers are used for supply of hot or cold conditioned air from the ventilation ducts to the ambiances such as office, meeting room, shop or for extraction of the polluted air from these ambiances. They are directly installed onto the plenum box and manufactured with 1, 2, 3, 4 slots. Each slot has two deflection blades that are capable of preventing internal turbulences and the direction of the air flow can be adjusted via these blades. Besides this, they are ideal for places that have ceiling heights between 2,6 - 4 mt.
COATING
* Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
* Aluminium anodized
* Analogue coating for damper and blades.
* Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
* Installation with bridge.
ACCESSORIES
*BPB : Plenum box
ORDER CODE
Model / Slot Number / Standard Dimensions (ØD x L (mm)) / Accessory / Coating Type
SYMBOLS
ØD : Inlet diameter of slot diffuser’s plenum box PH : Height of plenum box
L (mm) : Length of slot diffuser
EPC : Eloctrostatic powder coating
NA : Aluminium anodized
AN : Analogue coating

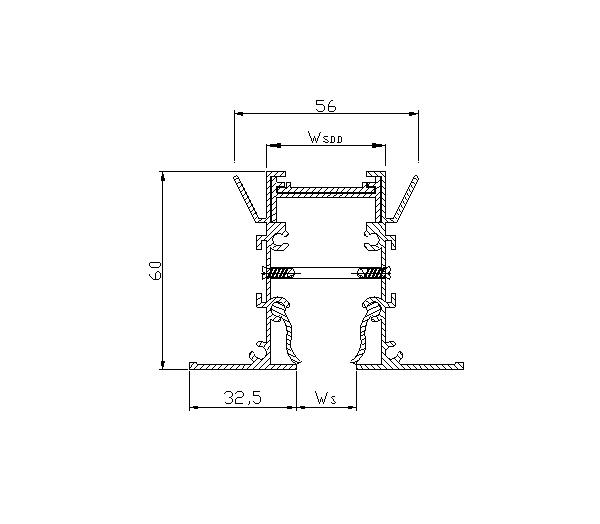

WS (mm) : Width of slot diffuser
WSDD (mm) : Width of slot diffuser’s damper
|
