MODEL

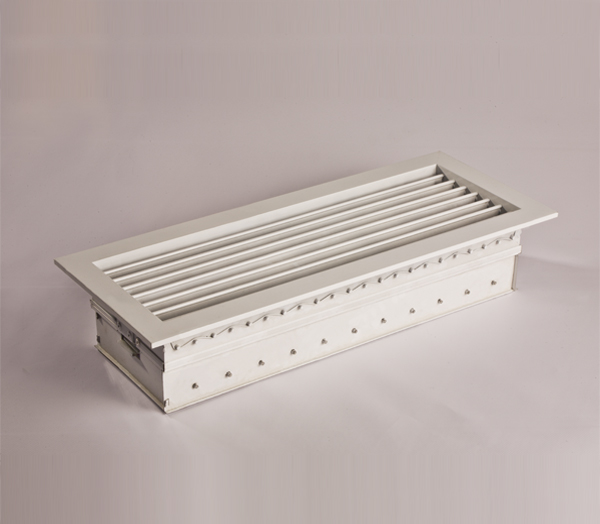

- BSG : Supply grille, with adjustable blades.
- BSG - H : Supply grille, in which horizontal blades are on the front.
- BSG - V : Supply grille, in which vertical blades are on the front.
MATERIAL
All of the product frame and blades are manufactured from extruded aluminium profile.
USAGE
They carry out the function of blowing hot or cold conditioned air from ventilation ducts to the environment.
COATING
- Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
- Aluminium anodised
- Depending on demand, all the colors in other RAL codes are provided too.

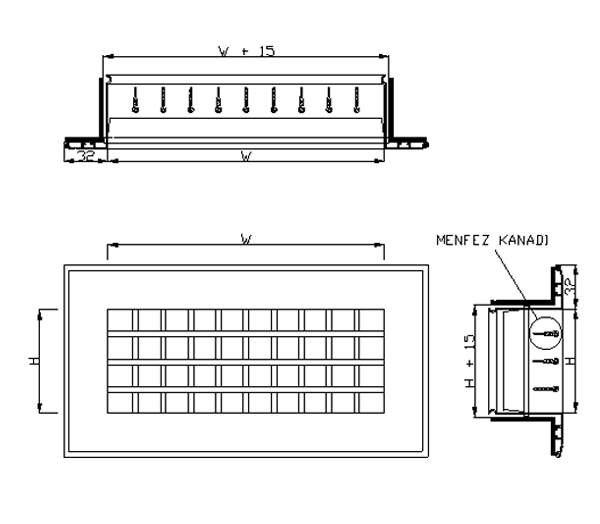

FRAME TYPES
ASSEMBLY
- Installation with screw
- Installation with concealed screw
- Installation with plate spring
- Installation with subframe
ACCESSORIES
- BPBD : Parallel blade damper
- BOBD: Opposed blade damper
- BPB : Plenum box
ORDER CODE
Model / Frame Type / Accessory / Assembly Method / Standard Dimensions / Coating Type
SYMBOLS:
BSGF : Frame of supply grille
SC : Installation with screw
CS : Installation with clips
PS : Installation with plate spring
W (mm) : Neck Length
H (mm) : Neck Height
EPC : Electrostatic powder coating
NA : Aluminium anodised
;)
;)
