MODEL
*BSK.FC : Forced convectional floor convector *BSK.LFC : Floor convector with mini fan
*BSK.C : Natural convectional floor convector
Malzeme

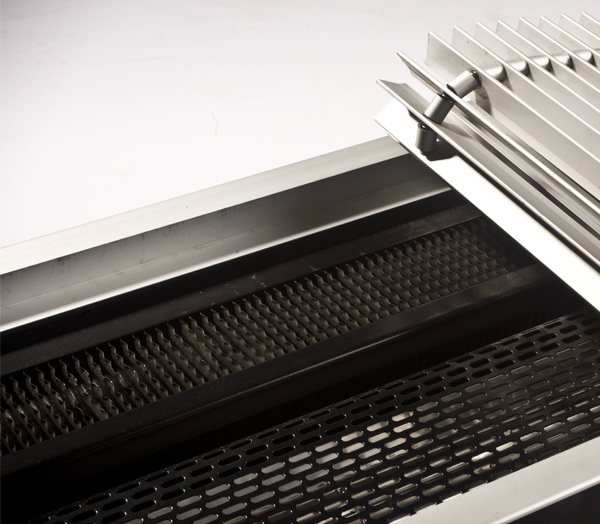

Linear grille, convector casing and frame are manufactured from high corrosion resistant aluminium profile.
USAGE

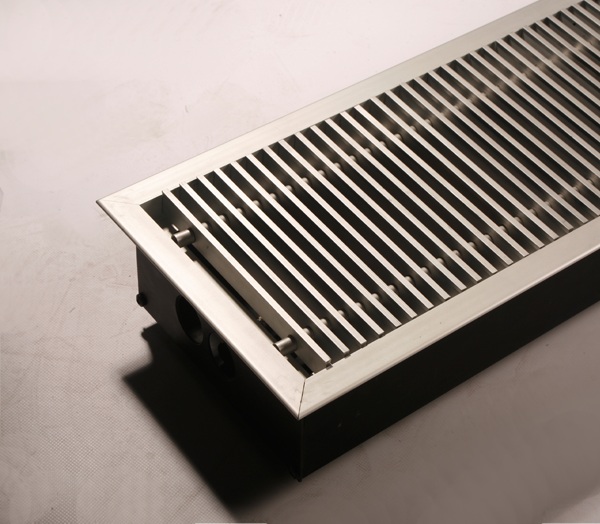

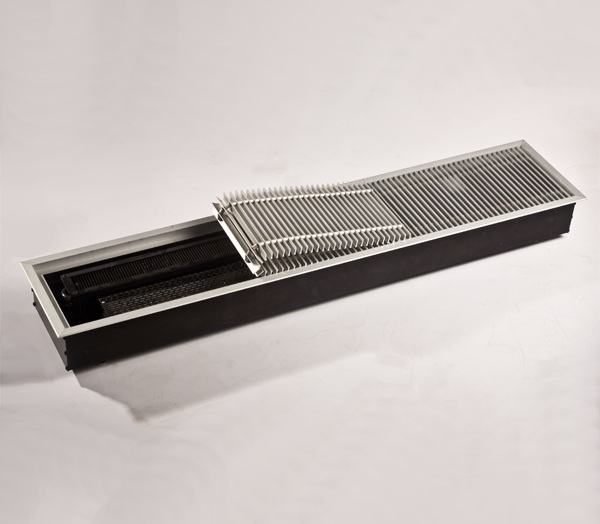

BSK series floor convectors are alternative to underfloor heating system and, they are modern heating equipments. As a second system, it can work with raidator, underfloor heating, air handling unit etc. No wall space is needed during installation and it gives perfect heat. BSK series floor convectors are mounted intı the floor and covered with a stylish linear grille. Especially, it can be used in every field of application easily and thanks to the strength of the linear grille parallel to short side you can move over it safely. There are stay bolts inside the casing of all convectors to determine the altitude and provide convenience in application. They are used to increase comfort conditions in everwhere, especially places that has glass curtain wall such as showrooms, banks, winter gardens, indoor pools, sport fields, business centers, conservatories, public spaces, residences.
Natural convectional floor convectors (BSK.C) operate according to natural convection priciple. They are used as a secondary heater in local heating systems. They are used in order to preven the heat loss and the condensation on the glass surface.
Forced convectional floor convectors (BSK.FC) can be designed as primary or secondary heating system. They are usually used in situations where heat loss of aqmbient is mostly from glass surface. Product creates air curtain on the glass surface with the air that it heated.
Floor convectors with mini fan (BSK.LFC) have minimum height and maximum heating capacity. Because they have 85 mm height, they offer perfect solution for multi-storey buildings, apartments and mezzanine floors.
Tangential fans with very low sound leves are used in forced convectional convectors and convectors with mini fan. Mini ball valves and flexible steel hoses are used at coil inlet and outlet as standard. According to customer demand, thermostatic valves and motorized valves can be used at coil outlet.
|
