MODEL

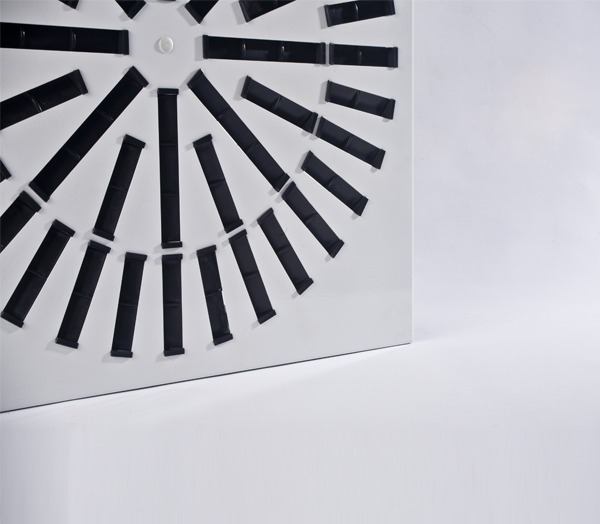

*BSWA : Swirl diffuser with adjustable radial blades and square faceplate.
MATERIAL
Product faceplate is manufactured from DKP sheet and blades are manufactured from plastic.
USAGE
BSWA model swirl diffusers are used for supply of hot or cold conditioned air to ambiances that have ceiling heights between 2,6 - 4 mt such as office, meeting room, shop, cinema and clean room by providing the fresh air to mix the indoor air rapidly and for extraction of polluted air from these ambiances.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
*Bridge installation to plenum box
ACCESSORIES
*BPB : Plenum box
ORDER CODE
Model / Standard Dimensions / Number of Blades / Accessory / Coating Type

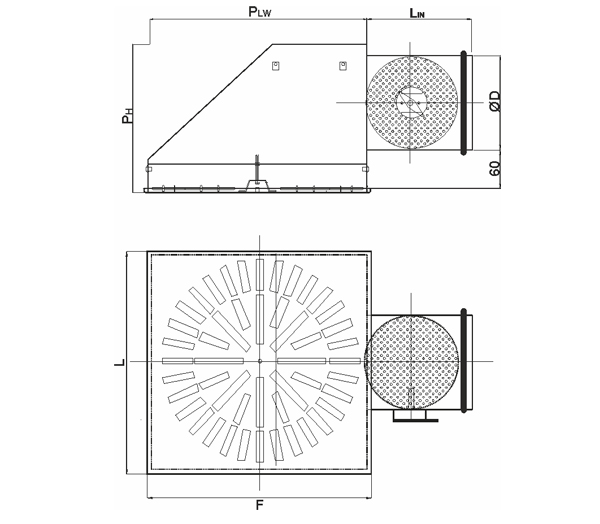

SYMBOLS
ØD : Inlet diameter of plenum box PH : Height of plenum box
PLW (mm) : Length of plenum box
PLH (mm) : Width of plenum box
LIN (mm) : Length of plenum box inlet mouth
F : Frame length
L : Frame width
EPC : Eloctrostatic powder coating |
