MODEL

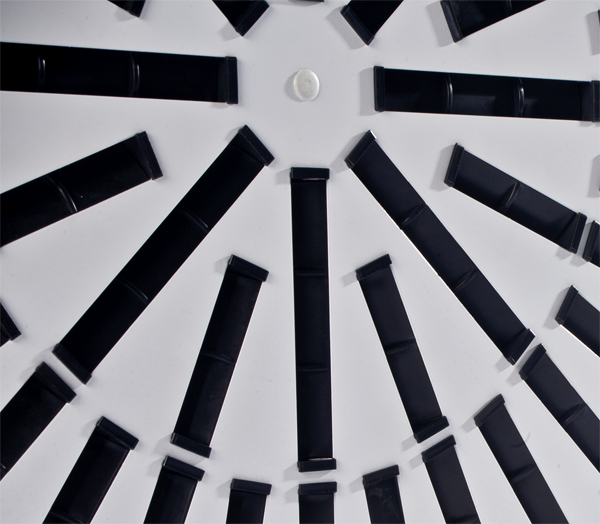

*BSWB : Swirl diffuser that has adjustable blades in the square form and square faceplate.
MATERIAL
Product faceplate is manufactured from DKP sheet and blades are manufactured from
plastic.
USAGE
BSWB model swirl diffusers are used in supply and return ducts for providing the fresh air to mix with the indoor air rapidly. They are suitable for usage in places that have ceiling heights between 2,6 - 4 mt. Swirl diffusers are manufactured in square form.
COATING
*Electrostatic powder coating (Standard colors are RAL9010 and RAL9016)
*Depending on demand, all the colors in other RALcodes are provided too.
ASSEMBLY
*Bridge installation to plenum box
ACCESSORIES
*BPB : Plenum box
ORDER CODE
Model / Standard Dimensions / Number of Blades / Accessory / CoatingType

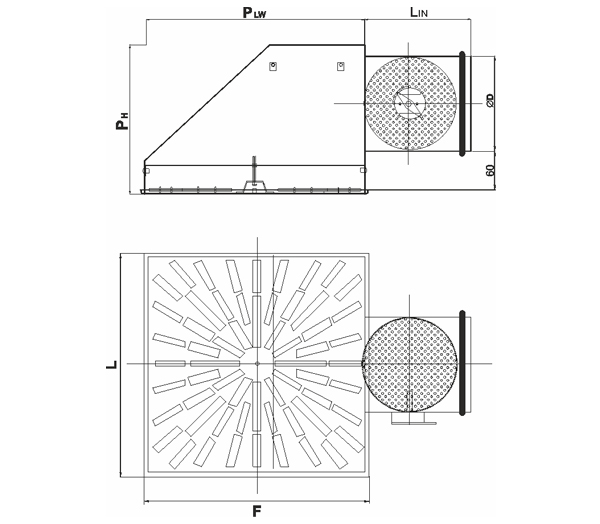

SYMBOLS
ØD : Inlet diameter of plenum box PH : Height of plenum box
PLW (mm) : Length of plenum box
PLH (mm) : Width of plenum box
LIN (mm) : Length of plenum box inlet mouth
F : Frame length
L : Frame width
EPC : Eloctrostatic powder coating
|
