MODEL
* Swirl diffuser that has fixed radial blades and square faceplate.
MATERIAL
Product surface and blades are manufactured from DKP sheet.
USAGE
BSWC model swirl diffusers are ideal for places where high air flow rate is necessary. They are suitable for usage in places that have ceiling heights between 2,6 - 4 mt. They carry out the function of supplying hot or cold conditioned air from ventilation ducts to ambiances and extraction of polluted air from these ambiances. Front faceplate is manufactured in square form and the blades are fixed.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
*Bridge installation to plenum box
ACCESSORIES
*BPB : Plenum box
ORDER CODE
Model / Standard Dimensions / Number of Blades / Accessory / Coating Type

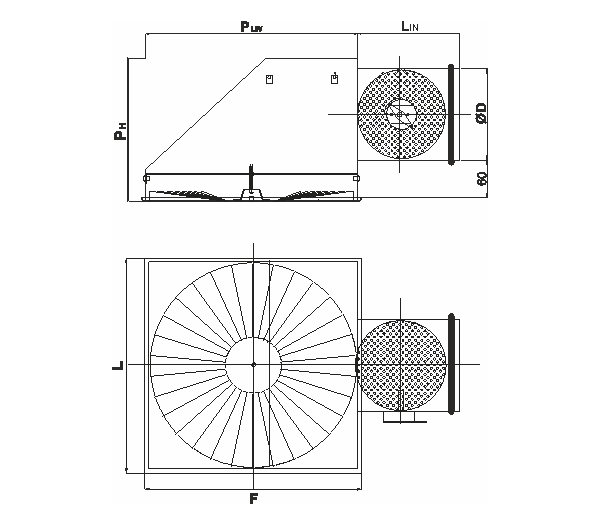

SYMBOLS
ØD : Inlet diameter of plenum box PH : Height of plenum box
PLW (mm) : Length of plenum box
PLH (mm) : Width of plenum box
LIN (mm) : Length of plenum box inlet mouth
F : Frame length
L : Frame width
EPC : Eloctrostatic powder coating
|
