MODEL
* BSWD&FB : Four-way swirl diffuser with fixed blades.
* BSWD&AB : Four-way swirl diffuser with adjustable blades.
MATERIAL

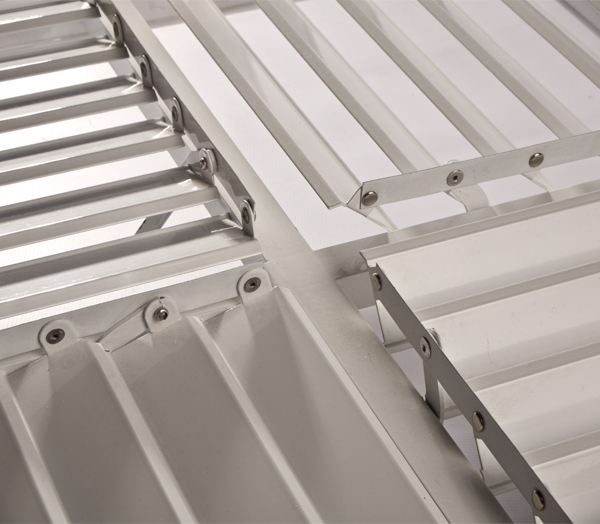

Product frame and blades are manufactured from aluminium profile.
USAGE
Four-way swirl diffuser is used for supply of hot or cold conditioned air from ventilation ducts to ambiances such as conference halls, theathers, sports halls and supermarkets. Product can be manufactured with fixed blades or adjustable blades by handle or servomotor. Blades are adjusted to vertical position for heating, to horizontal position for cooling and isothermal throws. They are used at places where ceiling height is minimum 3,8 mt. Operating temperature range is ±10 °C and 25 x 25 mm steel wire mesh can be used for protection of the diffusers surface.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodized
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
*Installation with screw
ACCESSORIES
*BPB : Plenum box: It is manufactured from 0,7 mm galvanized sheet, if acoustic insulation is required, 6-9 mm thick opaque black poliurethane foam material is applied into plenum box.
*BWM : Steel wire mesh
*SM : Servomotor
ORDER CODE
Model / Standard Dimensions / Accessory / Coating Type

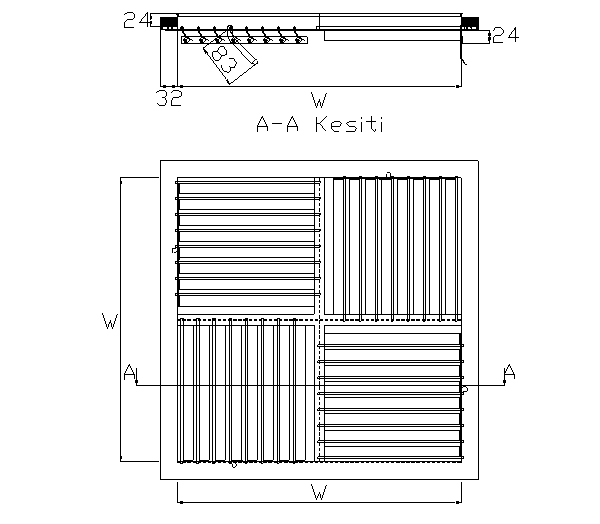

SYMBOLS
W : Frame Length SC : Screw fixing
EPC : Eloctrostatic powder coating |
