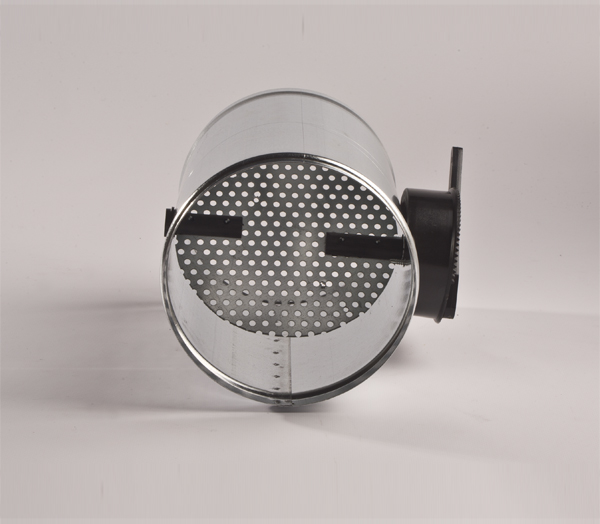

Products > Dampers > BVCD-RP Circular Volume Control Damper with Perforated Flap


- Product PDF Files

Model
  • BVCD-R&P

MATERIAL
Product casing is manufactured from galvanized sheet, flap from perforated galvanized sheet and flap handle from galvanized sheet or PVC material.

USAGE
It is used for adjusting flow rate in circular section ducts. Flow rate adjustment is made by OPEN - CLOSE and interval values on flap handle. Cordon is formed on both sides of the damper in order to use the product in flexible ducts.

Assembly
Screw assembly to circular section duct.

COATING
  • Electrostatic powder painting
  • All other Ral codes can be provided, on demand.

ORDER CODE
Model / Standard Dimensions / Coating

SYMBOLS
ØD (mm)        : Neck diameter of circular volume damper with perforated flap
L  (mm)           : Length of circular volume damper with perforated flap
EPC                 : Electrostatic powder coating
