MODEL
*BDD-156 : Drum diffuser with 156 mm diameter cylindrical body
*BDD-256 : Drum diffuser with 256 mm diameter cylindrical body
MATERIAL
Product casing, blade and cylindrical body are manufactured drom extruded aluminium profile.
USAGE
Drum diffusers are used for heating, cooling and ventilation of ambiances where high and longa ir throws are needed such as gyms, factories, warehouses, concert halls and shopping centers. Air flow can be deflected to ±30° up and down with the help of cylindrical body placed into casing and also air flow can be deflected to lef tor right via adjustable blades placed into cylindrical body. Additionally they have ow pressure and sound levels.
COATING
*Electrostatic powder coating (Standard colors are RAL 9010 and RAL 9016)
*Aluminium anodized
*Analogue coating for damper and blades
*Depending on demand, all the colors in other RAL codes are provided too.
ASSEMBLY
*Installation to rectangular duct
*Installation to round duct
*Installation to wall
ACCESSORIES
*Adaptor
ORDER CODE
Model / Type / Accessory / Coating Type

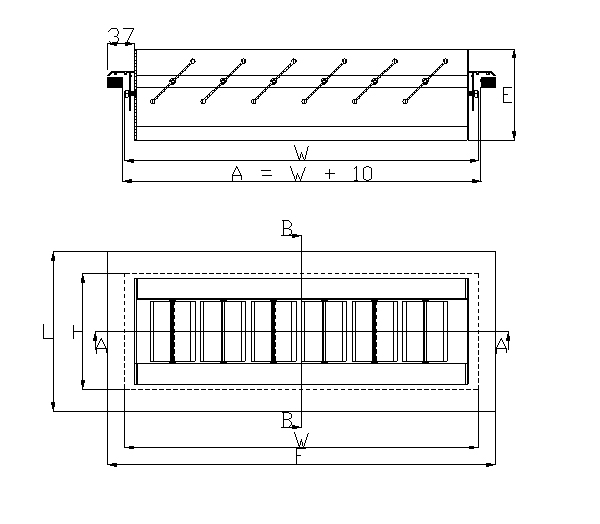

SYMBOLS
W (mm) : Neck length H (mm) : Neck width
F (mm) : Frame length
L (mm) : Frame width
E (mm) : Drum diffuser height
A (mm) : Duck inlet mouth length
B (mm) : Duct inlet mouth width
EPC : Eloctrostatic powder coating
NA : Aluminium |
